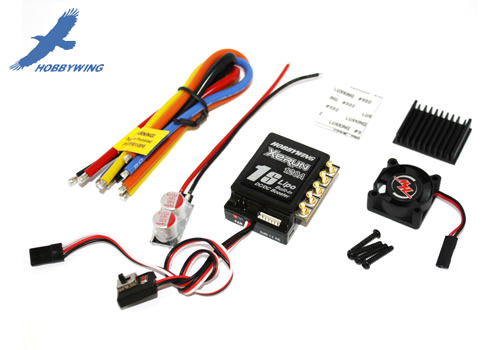

Xerun-120A-1S-SD (V2.1) Sensored Brushless ESC for 1/12 and 1/12 Competition.
Specification:
– Output: Continuous 120A, burst 760A.
– Input: 3-6 cells NiMH/NiCd or 1-2S LiPo (3S Lipo is NOT allowed) * Note #1
– BEC: 6V@2A built-in DC/DC booster.
– Resistance: 0.0003 Ohm.
– Motor Supported: Sensored brushless and Sensorless Brushless.
Suitable Motor:
– With 1S Lipo or 3-4 cells NiMH, 1/12 on-road >=2.5T
– With 2S Lipo or 5-6 cells NiMH, 1/10 on-road >=3.5T, 1/10 off-road >=5.5T
Suitable Car:
– 1/10, 1/12 on-road or off-road competition.
– 1/10, 1/8 rock crawler pro race.
– Size: 43mm(L) * 36mm(W) * 33mm(H, with cooling fan).
– Weight: 105g (With cooling fan).
– * Note #1: The cooling fan gets the power supply directly from the battery.
