Set Combo motore e regolatore Brushless Leopard 1:10 60A modellismo

Set Combo Brushless Leopard.

Codice: 300042

Prezzo di listino: €108

Asta pazza eBay a partire da 1€!!!

Set Combo motore e regolatore Brushless Leopard 1:10 60 A.

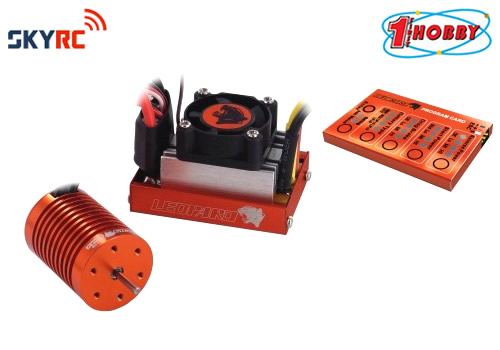

Set Motore e regolatore Brushless (sensorless) + scheda di programmazione della serie Leopard. Questo combo e’ stato progettato per elevate prestazioni ad un costo contenuto ed anche le ridotte dimensioni, permettono di utilizzarlo agevolmente su qualsiasi modello.

Specifiche motore 10T:
– Item Name: Leopard 3930KV/10T/2P BL Motor for 1/10 Car
– Sensored/Sensorless: sensorless
– Turns: 10T
– KV value: 3930KV
– Poles: 2P
– Diameter: 36 mm
– Motor length: 50 mm
– Extend shaft diameter: 3.165 mm
– Length of extend shaft: 15 mm
– Weight: 176 gr
– No loading at 7.2V Current: 1.8 A
– Max current: 66 A
– Resistance: 0.0157 Ohms
– Battery range: 1-3S
– Max Temperature: 150 C
– Suitable car scale: 1:10
– Suitable ESC: 35 A or higher
– Connector Type: 3.5 mm

Specifiche ESC 60A:
– Controls, Leopard 60A ESC V2: Fwd/Brk or Fwd/Bra/Rev
– Input Power (Cells): 2-3S LiPo,4-8S NiCd/NiMh
– Resistance: 0.001 Ohms per phase
– Continuous/Burst Current: 60 A/90 A
– Linear BEC: 5 V – 2 A
– Input Power (2S LiPo): On Road:>=9.0T – Off Road:>=10.0T
– Input Power (3S LiPo): On Road:>=10.0T – Off Road:>=13.0T
– Thermal Overload Protection: Yes
– Dimensions: 51.6x30x27.4 mm
– Weight (with wires): 78 gr

Istruzioni in inglese. Il kit non è più presente nel listino del distributore pertanto, nonostante sia nuovo, non è coperto da garanzia.

[Fonte: eBay.it]
