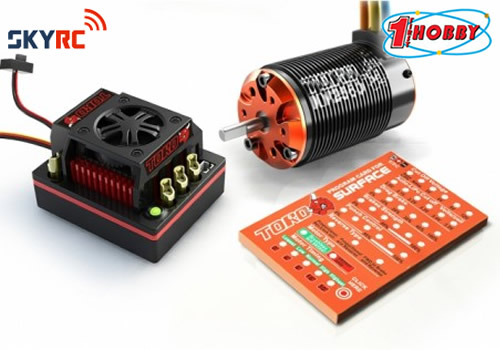

Set Combo motore 2160KV e regolatore 150 A Brushless per modelli in scala 1:8. Nel kit e’ compresa anche la scheda di programmazione per variare alcuni importanti parametri.
Specifiche motore 2160KV:
– Item Name: Toro X 2160KV/6T/6P BL Motor for 1/8 Car
– Sensored/Sensorless: Sensorless
– Turns: 6T
– KV value: 2160KV
– Poles: 6P
– Diameter: 41.8 mm
– Motor length: 78.5 mm
– Extend shaft diameter: 5 mm
– Length of extend shaft: 16.5 mm (+- 0.5 mm)
– Weight: 380 gr
– No loading at 7.2 V Current: 4.5 A
– Max current: 120 A
– Resistance: 0.0065 ohm
– Battery range: 24 V
– Max Temperature: 130 degrees
– Suitable car scale: 1:8 truck
– Thickness of lamination: 0.2×50 mm
