Regolatore brushless 25A Hobbywing EZRUN25A-H-V2 #HWG011 modellismo

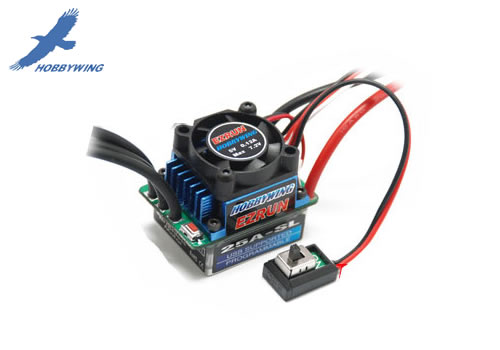

Regolatore elettronico brushless EZRUN Hobbywing 25A – V2.

Codice: EZRUN-25A-V2-H

Vai all’offerta su eBay.it

Prezzo di listino: €36

Asta pazza eBay a partire da 1€!!!

EZRUN regolatore Brushless 25 A per modelli 1:12-1:10.

EZRUN-25A-SL is specially designed for RTR application of 1:12 and 1:10 On-Road cars.

1 Specification:
1.1 Output: Continuous current 25 A, burst current 90 A.
1.2 Input: 4-9 cells NiMH/NiCd or 2-3 cells LiPo.
1.3 BEC Output: 6 V / 1.5 A.
1.4 Resistance: 0.005 Ohm.
1.5 Motor Supported: Sensorless Brushless Motor.
1.6 Suitable Brushless Motor:
– With 4-6 cells NiMH/NiCd or 2 cells Lipo: On-Road=12T.
– With 6-9 cells NiMH/NiCd or 3 cells Lipo: On-Road=18T.
1.7 Suitable Car: RTR application for 1:12, 1:10 On-Road cars.
1.8 Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
1.9 Weight: 30g (Without wires).

2 Features:
2.1 Compatible with all sonsorless Brushless motor.
2.2 Use top quality electronic components to enhance the current endurance ability of the ESC.
2.3 Excellent start-up, acceleration and linearity features.
2.4 With 3 running modes: Racing mode (Forward), Forward/Backward mode and Rock Crawler mode.
2.5 With 4 steps of maximum reverse force adjustment.
2.6 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
2.7 With 9 start modes (Also called “Punch”) from “Soft” to “Very aggressive” to suitable for different tracks.
2.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
2.9 With 8 steps of timing adjustment to get the best compatibility with various of motors.
2.10 Easily program with only one button and compatible with pocket-sized program card.

Istruzioni in inglese. Il kit non è più presente nel listino del distributore pertanto, nonostante sia nuovo, non è coperto da garanzia.
